The Graphic User Interface implemented on Qt is an App built over pyX2Cscope. The aim of this application is to serve as an example of how to make a desktop application.
Starting the GUI Qt
The GUI Qt is currently the default GUI, it runs out-of-the-box when running the command below:
python -m pyx2cscope
It can also be executed with the argument -q:
python -m pyx2cscope -q
Getting Started with pyX2Cscope Reference GUI
The GUI consists of three main tabs: Setup, Data Views, and Scripting.
Tab: Setup
The Setup tab is where you configure the connection to your microcontroller.
Connection Settings
ELF File: Click “Select ELF file” to choose the ELF file of the project your microcontroller is programmed with.
Interface: Select the communication interface:
UART: Serial communication
TCP/IP: Network communication
CAN: CAN bus communication
Connect: Press to establish the connection. The button changes to “Disconnect” when connected.
UART Settings
Port: Select the COM port from the dropdown. Use the refresh button to update available ports.
Baud Rate: Select the baud rate (38400, 115200, 230400, 460800, 921600).
TCP/IP Settings
Host: Enter the IP address or hostname of the target device.
Port: Enter the TCP port number (default: 12666).
CAN Settings
Bus Type: Select USB or LAN.
Channel: Enter the CAN channel number.
Baudrate: Select from 125K, 250K, 500K, or 1M.
Mode: Select Standard or Extended.
Tx-ID (hex): Transmit ID in hexadecimal (default: 7F1).
Rx-ID (hex): Receive ID in hexadecimal (default: 7F0).
Device Information
Once connected, device information is displayed on the right side:
Processor ID
UC Width
Date and Time
App Version
DSP State
Note: All connection settings are automatically saved and restored on the next application start.
Tab: Data Views
The Data Views tab provides two views that can be toggled independently using the buttons at the top:
WatchView: Monitor and modify variable values in real-time
ScopeView: Capture and visualize variable waveforms
You can enable both views simultaneously for a split-screen layout. You can change the width of each column by dragging the line between them. For this to take effect, adjust the App window size accordingly.

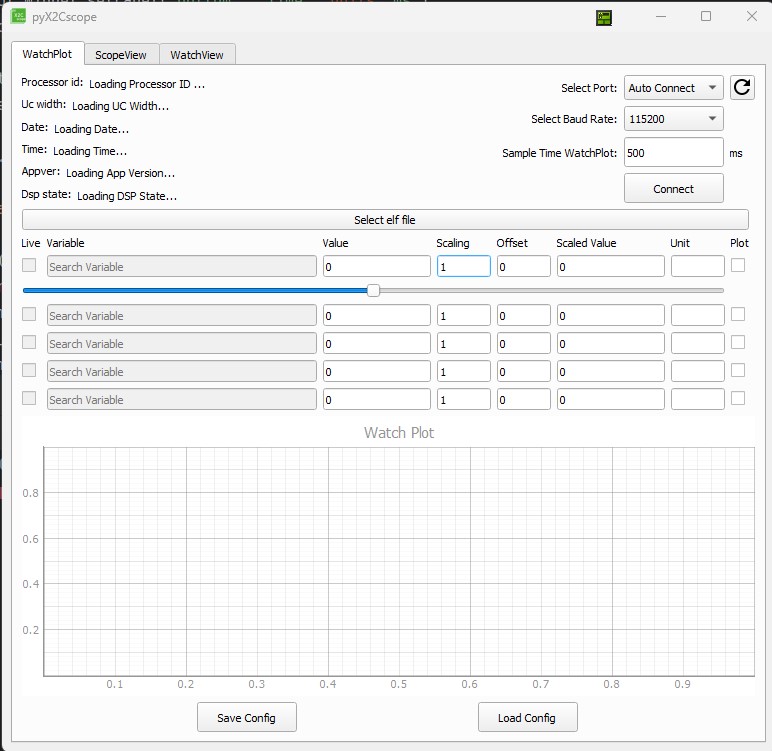

WatchView
Click “Add Variable” to add variables to monitor.
Select variables from the dialog window.
Configure scaling and offset for each variable.
Enable “Live” checkbox to poll values at 500ms intervals.
Enter new values and click “Write” to modify variables on the device.
Click “Remove” to delete a variable row.

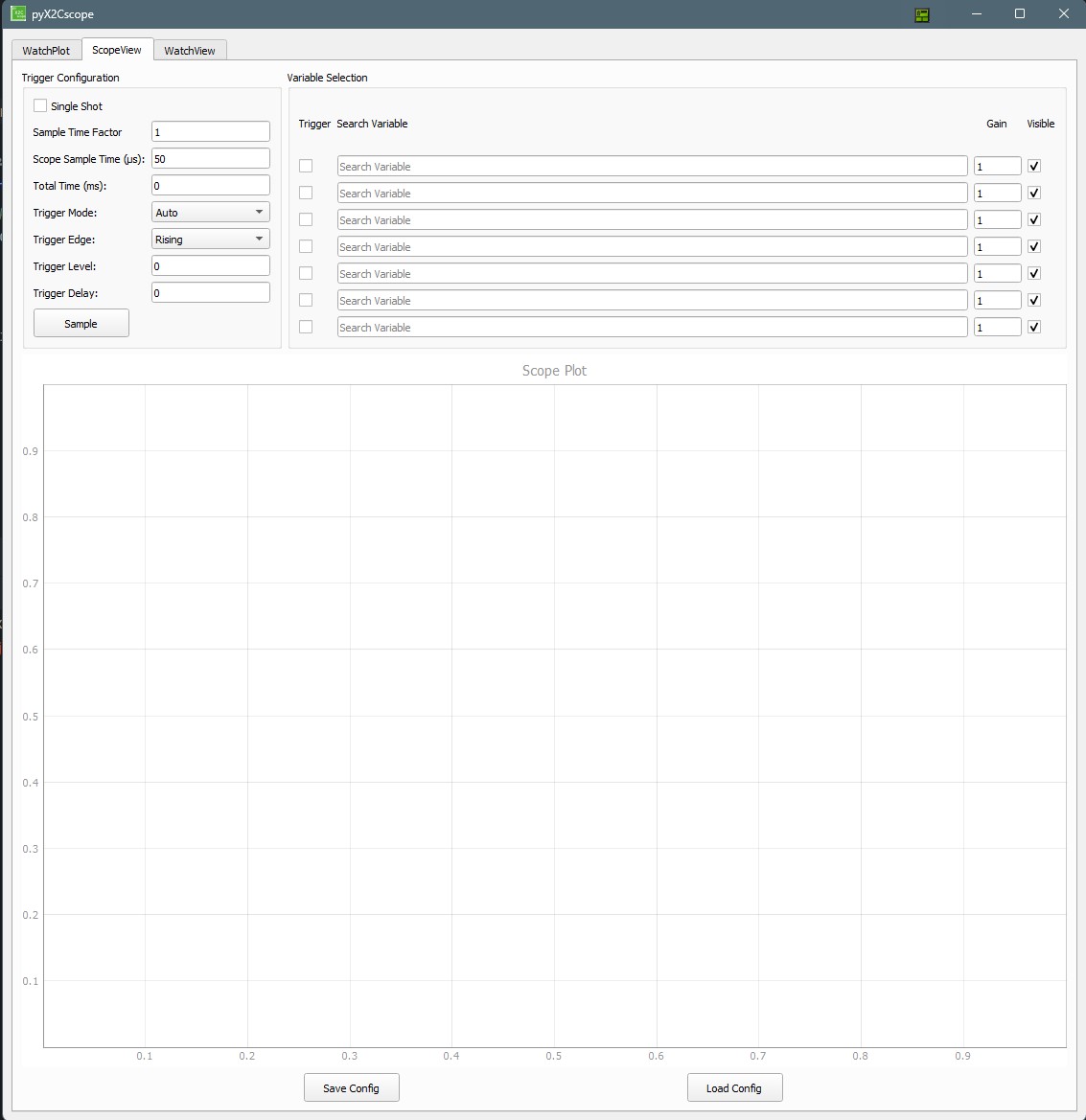

ScopeView
ScopeView supports up to 8 channels for precise signal capture.
Select variables for each channel from the dropdown.
Configure trigger settings:
Mode: Auto (continuous) or Triggered
Edge: Rising or Falling
Level: Trigger threshold value
Delay: Trigger delay in samples
Check the “Trigger” checkbox on the channel you want to use as trigger source.
Click “Sample” to start capturing, “Single” for one-shot capture, or “Stop” to halt.
Use the plot toolbar to zoom, pan, and export data (CSV, PNG, SVG, or Matplotlib window).
Special Function Registers (SFR)
Both WatchView and ScopeView support searching and adding Special Function Registers
(SFRs) — hardware peripheral registers such as LATD, TMR1, or PORTA — in addition to
ordinary firmware variables.
When the variable selection dialog opens, an SFR checkbox appears next to the search bar:
When the checkbox is unchecked (default) the list shows firmware variables.
When the checkbox is checked the list switches to SFRs parsed from the ELF file.
The checkbox is disabled (greyed out) if the connected ELF file contains no SFR entries.
Once an SFR is selected and confirmed, it is retrieved with sfr=True internally so it is
mapped to its fixed hardware address. From that point it behaves exactly like any other
variable — values can be read, polled live (WatchView), or captured as a scope channel
(ScopeView).
Save and Load Config
The Save Config and Load Config buttons allow you to:
Save the entire configuration including ELF file path, connection settings, and all variable configurations.
Load a previously saved configuration to quickly restore your setup.
When loading, the system automatically attempts to connect using the saved settings.
Tab: Scripting
The Scripting tab allows you to run Python scripts with direct access to the x2cscope connection.
Script Selection
Click Browse to select a Python script (.py file).
Click Edit (IDLE) to open the script in Python’s IDLE editor.
Click Help for documentation on writing scripts.
Execution Controls
Click Execute to run the selected script.
Click Stop to request the script to stop (scripts must check
stop_requested()in loops).Enable Log output to file and select a location to save script output.
Output Tabs
Script Output: Displays the actual output from your script (print statements, errors).
Log: Displays timestamped system messages (script started, stopped, connection status).
Available Objects in Scripts
When running from the Scripting tab, your script has access to:
x2cscope: The X2CScope instance (or
Noneif not connected via Setup tab)stop_requested(): Function that returns
Truewhen the Stop button is pressed
Example Script
# Example: Read and print a variable value
if globals().get("x2cscope") is not None:
var = x2cscope.get_variable("myVariable")
print(f"Value: {var.get_value()}")
# Example: Loop with stop support
stop_requested = globals().get("stop_requested", lambda: False)
while not stop_requested():
var = x2cscope.get_variable("myVar")
print(var.get_value())
time.sleep(0.5)
print("Script stopped.")
Note: Scripts run in the same process as the GUI. If connected via the Setup tab, scripts share the same x2cscope connection. Scripts can also create their own connections when running standalone.
